Introducing the NEW

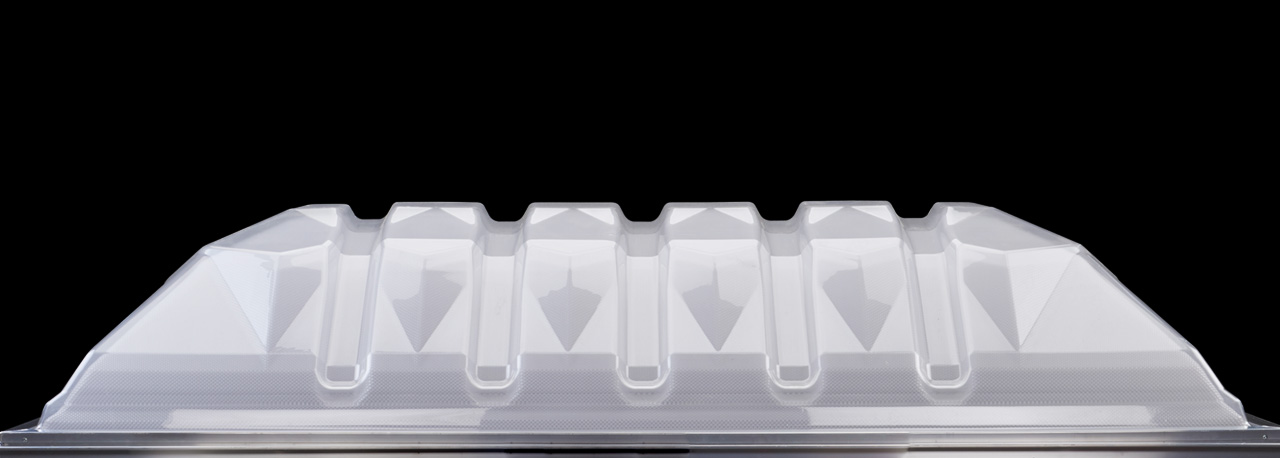

VELUX Dynamic Dome

A Revolution in Commercial Skylights

VELUX has just revolutionized the commercial skylight market with the introduction of the new VELUX Dynamic Dome, an innovative product that balances the structural demands of industry professionals with an architecturally progressive design.

What makes the VELUX Dynamic Dome so revolutionary?

50-year Silicone
red 2

Glazing Spacer

Reduces noises associated with expansion and contraction
Condensation release

Inner dome rests on material with similar expansion/contraction (durability)
red 4

Innovative, encapsulating one-piece Thermoplastic inner frame.

Dry installation (no caulk or curb tape needed)
Impenetrable water barrier
No exposed holes to the exterior (air/water/bug filtration)
100 percent thermally broken (the frame is the thermal break)
Fail-safe extra layer of water protection; no path for water to enter the building.

The benefits of Dynamic Dome Skylights

Light Harvesting

The sidewall of the VELUX Dynamic Dome has been engineered to closely match the angles of the sun during low-light periods (morning and evening) in order to harvest more sunlight to transfer indoors. The Dynamic Dome is also taller (30 percent of the total width of the skylight), which optimizes it for increased light transmittance. In addition, our innovative clear-smoothouter- dome over white-prismatic-inner- dome design provides 100 percent diffusion while also delivering up to 20 percent more light than our competitor’s designs.

Industry Leading Strength

By integrating a repeating pattern of ridges and ribs based on the geometry of an octahedron, the VELUX Dynamic Dome offers uncompromising strength within a visually stunning architectural design. Our glazing is also engineered from the finest thermoplastic material, making it the industry’s most robust combination of low-weight and high strength.

Competitive Market Pricing

To cut costs, VELUX utilizes a high volume manufacturing process. We are also able to ship more skylights per truckload (allowing for compounded savings in freight) due to the compact nesting nature of the VELUX Dynamic Dome. Costs associated with curb tape and silicone are also eliminated due to our dry installation method.

Unmatched Architectural Elegance

Without question, no other commercial skylight on the market can match the unique design and architectural elegance of the VELUX Dynamic Dome.

Superior Water Management

Unlike most commercial skylights that allow condensation to collect within an interior gutter, the VELUX Dynamic Dome utilizes a fail-safe proprietary wicking system that evacuates condensation to the exterior of the skylight. We’ve also incorporated a one-piece inner frame, creating superior durability (eliminating the need for corner welds that can leak) and 50-year silicone.

Secure Thermal Seal

The VELUX Dynamic Dome incorporates an encapsulating design that provides an impenetrable water barrier with a 100 percent thermally broken skylight frame, thereby isolating interior surfaces from exterior temperatures. This 'warm design' virtually eliminates condensation while also providing a secure weather seal to the curb to impede air, water, and bug infiltration.

Sizes for Dynamic Dome Skylights

Sizes	24" W			36" W			48" W			60" W			72" W
Sizes	Size Code	Fits Inside Curb	Max Clearance	Size Code	Fits Inside Curb	Max Clearance	Size Code	Fits Inside Curb	Max Clearance	Size Code	Fits Inside Curb	Max Clearance	Size Code	Fits Inside Curb	Max Clearance
36"L				3636	36 x 36	40¼ x 40¼
48"L	2448	24 x 48	28¼ x 52¼				4848	48 x 48	52¼ x 52¼
60"L				3660	36 x 60	40¼ x 64¼	4860	48 x 60	52¼ x 64¼	6060	60 x 60	64¼ x 64¼	7272	72 x 72	76¼ x 76¼
72"L				3672	36 x 72	40¼ x 76¼	4872	48 x 72	52¼ x 76¼	6072	60 x 72	64¼ x 76¼
96"L	2496	24 x 96	28¼ x 100¼	3696	36 x 96	40¼ x 100¼	4896	48 x 96	52¼ x 100¼	6096	60 x 96	64¼ x 100¼
120"L	2412	24 x 120	28¼ x 124¼	3612	36 x 12	40¼ x 124¼	4812	48 x 120	52¼ x 124¼	6012	60 x 120	64¼ x 124¼

Stock Sizes

7 business day lead-time
available in any QTY

Standard Sizes

14 business day lead-time
minimum order 25

Glazing Options

Model	Standard Options	Outer dome	Inner dome	Middle dome	Limits	Glazing code
Single Dome Options	LuxGuard	Clear Smooth (0.150)	N/A	N/A	Sizes > 4' x 8'	4P1
		Clear White (0.150)	N/A	N/A	Sizes > 4' x 8'	4P4
		Clear Smooth (0.118)	N/A	N/A	Max 4' x 8'	4P1
		Clear White (0.118)	N/A	N/A	Max 4' x 8'	3P2
Double Dome Options	Acrylic	Clear Smooth	White Smooth	N/A	All Sizes	0A1A2
		White Smooth	Clear Smooth	N/A	All Sizes	0A2A1
		Bronze Smooth	Clear Smooth	N/A	All Sizes	0A4A1
	100% Impact Modified Acrylic (IMA)	Clear Smooth	White Prismatic	N/A	Max 5' x 10'	1S1N2
		Clear Smooth	White Smooth	N/A	6' x 6' Only	1S1T2
	LuxGuard	Clear Smooth	White Prismatic	N/A	Max 5' x 10'	3P1C2
		Clear Smooth	Clear Prismatic	N/A	Max 5' x 10'	3P1C1
		White Smooth	Clear Prismatic	N/A	Max 5' x 10'	3P2C1
		Clear Smooth	White Smooth	N/A	All Sizes	3P1P2
		White Smooth	Clear Smooth	N/A	All Sizes	3P2P1
	LuxGuard Plus	Clear Smooth	White Prismatic	N/A	Max 5' x 10'	2P1C2
		Clear Smooth	Clear Prismatic	N/A	Max 5' x 10'	2P1C1
		White Smooth	Clear Prismatic	N/A	Max 5' x 10'	2P2C1
		Clear Smooth	White Smooth	N/A	6' x 6' Only	2P1P2
		White Smooth	Clear Smooth	N/A	6' x 6' Only	2P2P1
Triple Dome Options	LuxGuard	Clear Smooth	Clear Smooth	White Prismatic	Max 5' x 10'	3P1P1C2
		Clear Smooth	Clear smooth	Clear Prismatic	Max 5' x 10'	3P1P1C1
		Clear smooth	Clear Smooth	White Smooth	Max 6' x 10'	3P1P1P2
